Description
4 Functions In 1

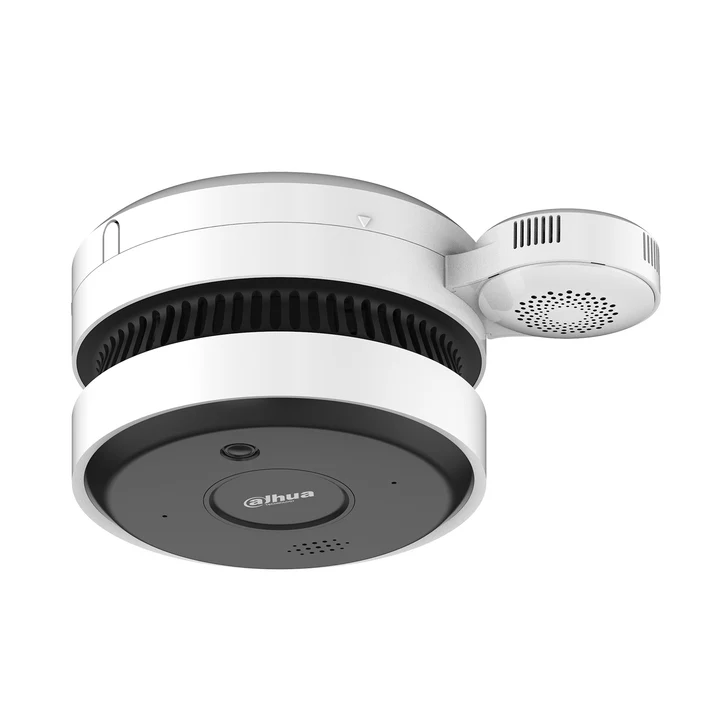

Enhanced Smoke Detector Camera: Detects Flames, Smoke, and Temperature Changes.

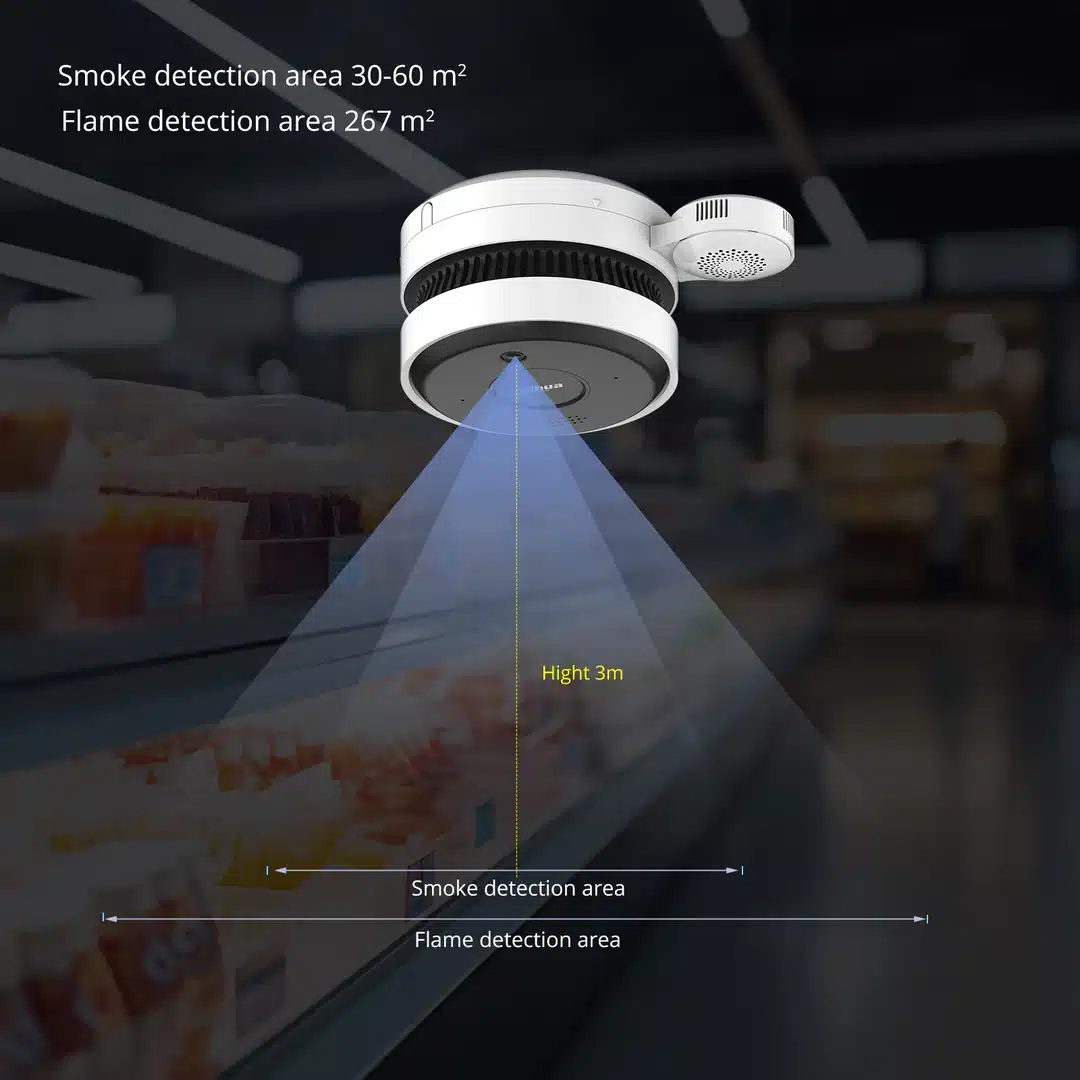

Large Detection Range
This camera has the ability to detect flame from long range. Smoke detection area 30-60㎡, flame detection area 267㎡.
Effectively distinguishes between dust and smoke
Advanced interior tech differentiates dust and smoke quickly to minimize inaccuracies.
Lower False Alarm
The smart algorithm of automatic compensation against dust concentration helps reduce false alarms. Based on the advanced split-spectrum smoke chamber, the device has higher accuracy rate on smoke detection.
| Model | DHI-HY-SAV849HAP-ET |
| Protection Area | 30 m²–60 m² |
| Working Principle | Photoelectric |
| Operating Voltage | 12V DC/PoE and 3V lithium battery |
| Battery Life | ＞ 3 years |
| Micro SD Card (Max.) | 256GB |
| Operating Temperature | –10°C to +55°C (+14°F to +131°F) |
| Operating Humidity | 0%–95% RH (non-condensing) |
| User Management | Up to 20 |
| Casing Material | Plastic |
| Product Dimensions | 175.3 mm×120.0 mm×81.6 mm(6.9″ × 4.72″ × 3.21″) |
| Packaging Dimensions | 205 mm × 148 mm × 111 mm (8.06″ × 5.82″ × 4.37″)(L × W × H) |
DHI-HY-SAV849HAP-ET Datasheet
