F4C-LED Bullet Outdoor 4MP LED 2.8mm

70.00 CHF

F4C-LED

Bullet Outdoor 4MP LED 2.8mm

4MP Fixed-focal Wi-Fi Bullet Network Camera

The Bullet Series, which is under the Dahua Wireless series, are cameras that are not only easy to install and operate, but also perform outstandingly and are cost-effective. They capture sharp, detailed images of scenes in high definition and offer powerful functions, such as AI human detection, to accurately trigger alarms. Information is also synchronously sent to your phone to keep you up-to-date. With its IP67 rating, these cameras are able to withstand harsh environments, making them highly suitable for use in small and medium-sized settings such as small-sized retail stores.

EAN: 6939554914393

Categories: , , ,

Description

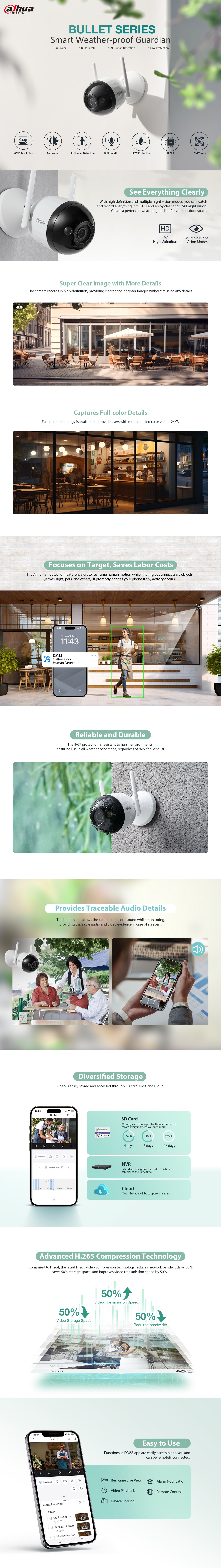

Detail Page Dahua Bullet Series 4MP V2.0 EN 202312
Camera
Image Sensor 1/3″ CMOS
Max. Resolution 2560 (H) × 1440 (V)
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Illuminator On/Off Control Auto
Illuminator Number 2 (Warm light )
Max. Aperture F1.6
Field of View 2.8 mm: H: 98°; V: 55°; D: 115°
3.6 mm: H: 78°; V: 41°; D: 94°
Intelligence
Human Detection Support the classification and accurate detection of human
Video & Audio
Video Compression H.264B; H.264; H.264H; H.265
Video Frame Rate Main stream: 2560 × 1440@(1–25/30 fps);

sub stream: 640 × 480@(1–25/30 fps);

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Resolution 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720)
Video Bit Rate H.264: 32kbps ~ 4096kbps

H.265: 12kbps ~ 4096kbps
Day/Night Color/B/W
WDR DWDR
Motion Detection OFF/ON
Smart Illumination Yes
Image Rotation 0°/180°
Built-in MIC Yes, built-in Mic
Audio Compression G.711a; G.711Mu; PCM; G.726
Network
Network Port RJ-45 (10/100 Base-T)
Wi-Fi IEEE802.11b/g/n 2.4–2.4835 GHz; 2.4 G
Storage Micro SD card (support max. 256 GB)
Management Software Smart PSS; DSS; DMSS
Mobile Client iOS;Android
General
Certifications CE-LVD: EN62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
CE-RED: Radio Equipment Directive 2014/53/EU
Power Supply 12 VDC
Power Consumption Basic: 2.2 W (12 VDC)
Max. (H.265+warm light intensity): 5.4 W (12 VDC)
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95%
Protection IP67
Casing Material Metal + plastic
Product Dimensions 131.0 mm × 78.4 mm × 97.2 mm (5.47″ × 4.80″ × 3.83″) (L × W × H)
Net Weight 254.5 g (0.56 lb)
Datasheet 2024-04-29 F4C-LED_S0_datasheet_20240429 English
