Description

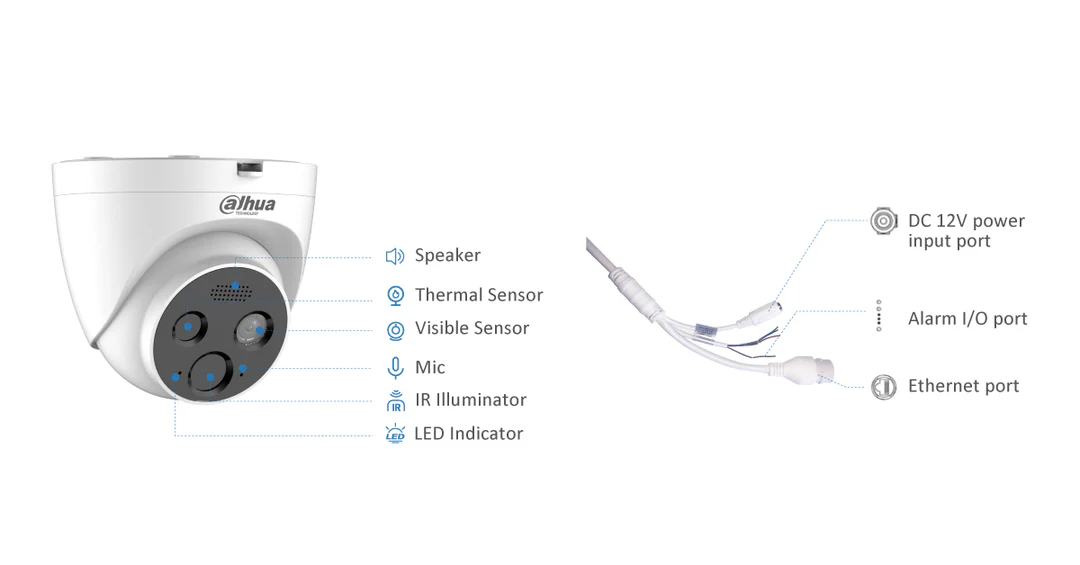

Audible and Visible Notification

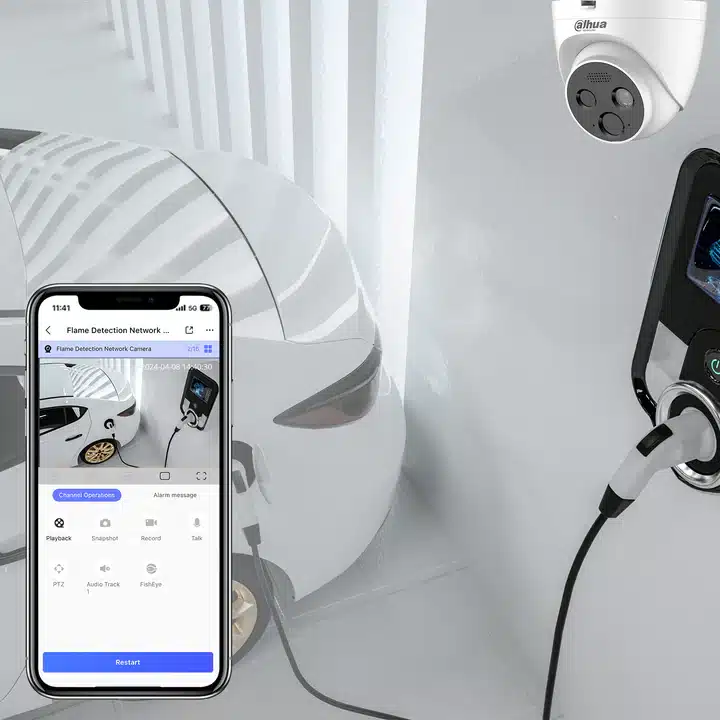

Flame detection network camera can provides intelligent visual and audible warning. Featuring remote intercom and alarm input/output functionality, it realizes convenient linkage.
Dual Image Output
Increase Productivity with High-Quality Dual Image Output Solutions. Experience a boost in productivity with our high-quality solutions designed to streamline your workflow.

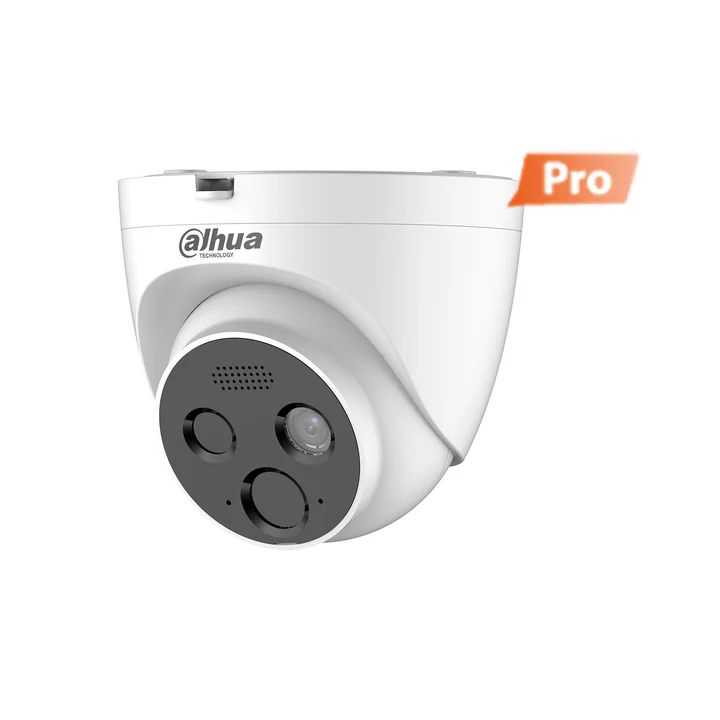

Flame Detection Camera Pro Features
Enhance Your Surveillance System with Versatile Detectors Offering Numerous Features.
| Model | DHI-HY-FT431LDP |
| Detector Type | Vanadium oxide uncooled focal plane detector |
| Effective Pixels | 120 (H) × 90 (V) |
| Pixel Pitch | 17 μm |
| Spectral Range | 8 μm–14 μm |

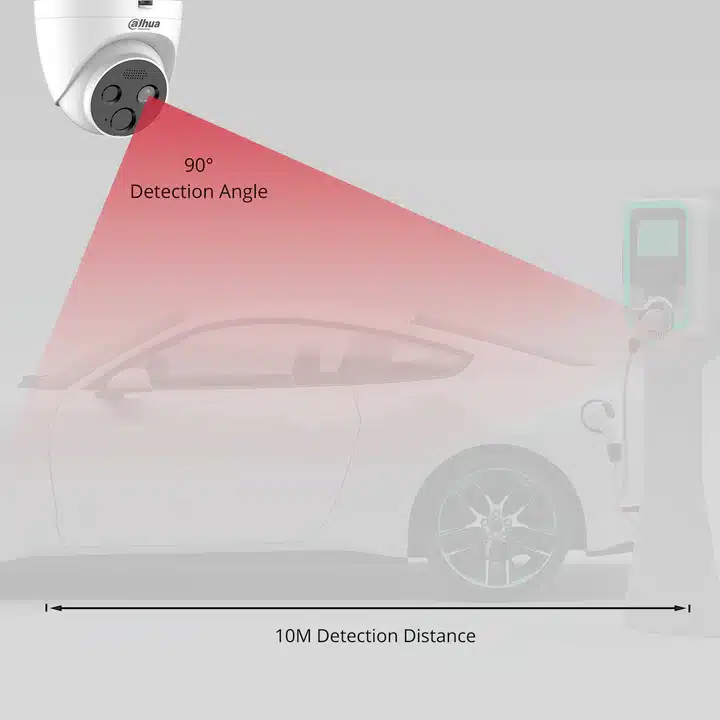

| Flame Detection Distance | 10 m: 10 cm × 10 cm |
| Power Supply | 12 VDC ± 20%; PoE |
| Operating Temperature | –20°C to +60°C (–4°F to +140°F) |
| Relative Humidity | ≤95% |
| Storage Temperature | –20°C to +70°C (–4°F to +158°F) |
| Bracket | Junction mount: PFA130-E |
| Lens | Included |
| Net Weight | ≤ 0.85 kg (1.87 lb) |
| Product Dimensions | φ110mm × 88.6mm (φ4.33″ × 3.49″) |
| Installation | Ceiling Mount |
DHI-HY-FT431LDP Leaflet
