Description

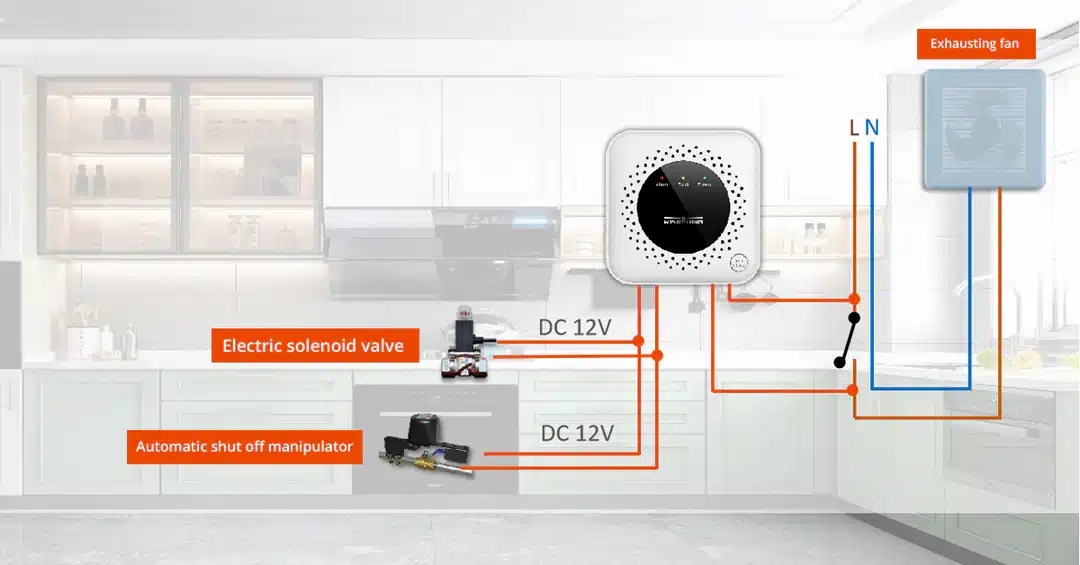

Smart Linkage
When LPG leakage detected, the device will automatically shut off the valve and turn on the exhausting fan

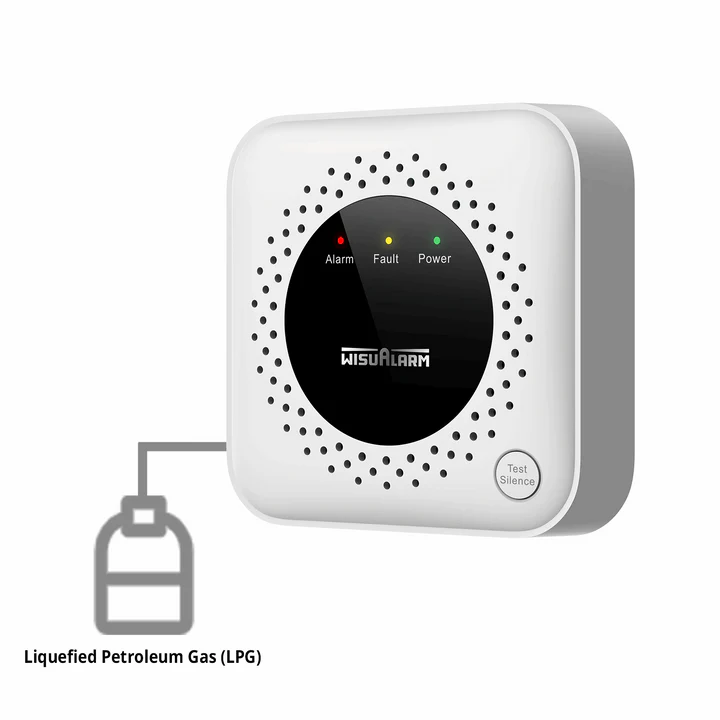

Detection of Propane
Intelligent and accurate detection of gasleakage, and send out alarm signal timely.

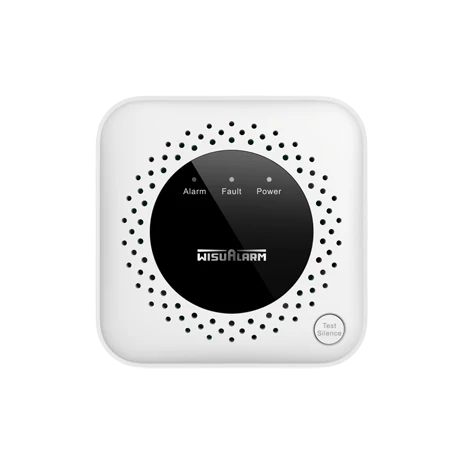

| Product Model | DHI-HY-GB40A |
| Gas Type | Propane (C₃H₈) |
| Alarm Threshold | 10% LEL |
| Response Time | ≤30s |
| Supply Voltage | DC 12V |
| Power Consumption | ≤0.8W |
| Output | 1 valve output, 1 relay output |
| Operating Temperature | –10°C to +55°C (+14°F to +131°F) |
| Relative Humidity | ≤95% RH (non condensing) |
| Warm-up Period | 180 s |
| Alarm Sound Output | 70dB (A) at 1m (3.28 feet) |
| Silence | Support |
| Dimensions | 86.6 mm × 86.6 mm × 29.2 mm (3.41″ × 3.41″× 1.15″) |
DHI-HY-GB40A User Manual
