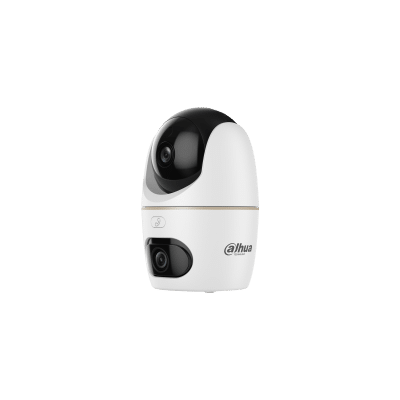

H5D-5F Hero Indoor Dual Lens PT 5MP

106.60 CHF

H5D-5F

Hero Indoor Dual Lens PT 5MP

5+5MP Indoor Wi-Fi Dual-Lens Pan & Tilt Camera

The Hero Dual Series, part of the Dahua Wireless series, has both fixed and PT lenses, allowing for simultaneous live monitoring of two areas with just one camera for multi-angle coverage. Both lenses offer AI human & pet detection, which significantly reduce the occurrence of false alarms. Particularly, the PT lens can identify moving targets and track them automatically. When the camera detects an intruder, it will trigger sound and light alerts and send notifications to the mobile client, keeping you up to date regardless of your location. These cameras are commonly used in such small-scale scenarios as stores and restaurants.

EAN: 6939554941870

Categories: , , ,

Description

Detail Page Dahua Hero Dual Series H5D 5F V2.0 EN 202501
Camera
Fixed Lens
Image Sensor 1/3″ CMOS
Max. Resolution 2880 (H) × 1620 (V)
Illumination Distance Up to 30 m (98.43 ft) (IR)
Illuminator Number 2 (IR LED)
Angle Adjustment 0° to 15°
Lens Type Fixed-focal
Focal Length 3.6 mm
Max. Aperture F2.0
Field of View H: 86°; V: 46°; D: 104°
PT Lens
Image Sensor 1/3″ CMOS
Max. Resolution 2880 (H) × 1620 (V)
Illumination Distance Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm light)
Illuminator Number 2 (IR LED); 1 (Warm light)
Angle Adjustment Pan: 0° to 349°

Tilt: –5° to 90°
Lens Type Fixed-focal
Focal Length 3.6 mm
Max. Aperture F2.0
Field of View H: 86°; V: 46°; D: 104°
Intelligence
Human Detection Yes
Pet Detection Yes
Audio and Video
Video Compression H.265
Video Frame Rate Main stream: 2880 × 1620@15 fps
sub stream: 640 × 360@15 fps
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Video Bit Rate H.265: 768 kbps–4096 kbps
Day/Night Auto(ICR)/Color/B/W
WDR DWDR
Motion Detection Yes
Image Rotation 0°/180°
Built-in MIC Yes, built-in Mic
Built-in Speaker Yes, built-in speaker
Audio Compression G.711a
Network
Network Port RJ-45 (10/100 Base-T)
Wi-Fi IEEE 802.11a/b/g/n/ac/ax 2.4–2.4835 GHz, 2.4 G, EIRP≤20 dBm & 5.15–5.25 GHz, 5 G, EIRP≤23 dBm@5150–5250 MHz
Wi-Fi Pairing Bluetooth pairing
Storage Micro SD card (support max. 256 GB)
Management Software DMSS
Mobile Client iOS;Android
Function
Abnormal Sound Alarm Yes
Privacy Mode Yes
General
Certifications CE
Power Supply 5 VDC
Power Consumption Basic: 2.5 W;
Max.: 5.4 W (pulling stream+ IR + PT rotation)
Operating Temperature –10 °C to +45 °C (–4 °F to +113 °F)
Operating Humidity ≤95% (RH), non-condensing
Casing Material Plastic
Product Dimensions Φ80.9 mm × 125.7mm (3.19″ × Φ4.95″)
Net Weight 233 g (0.51 lb)
Datasheet 2024-09-02 H5D-5F_S0_datasheet_20240902 English
