Description

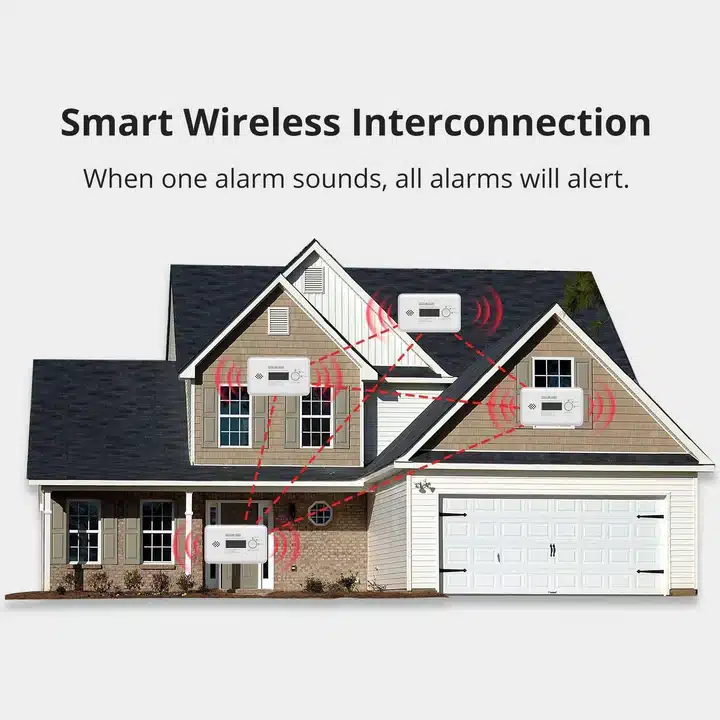

Expandable Wireless Safety Network
Connects with up to 24 Wisulink wireless alarms for full home coverage.

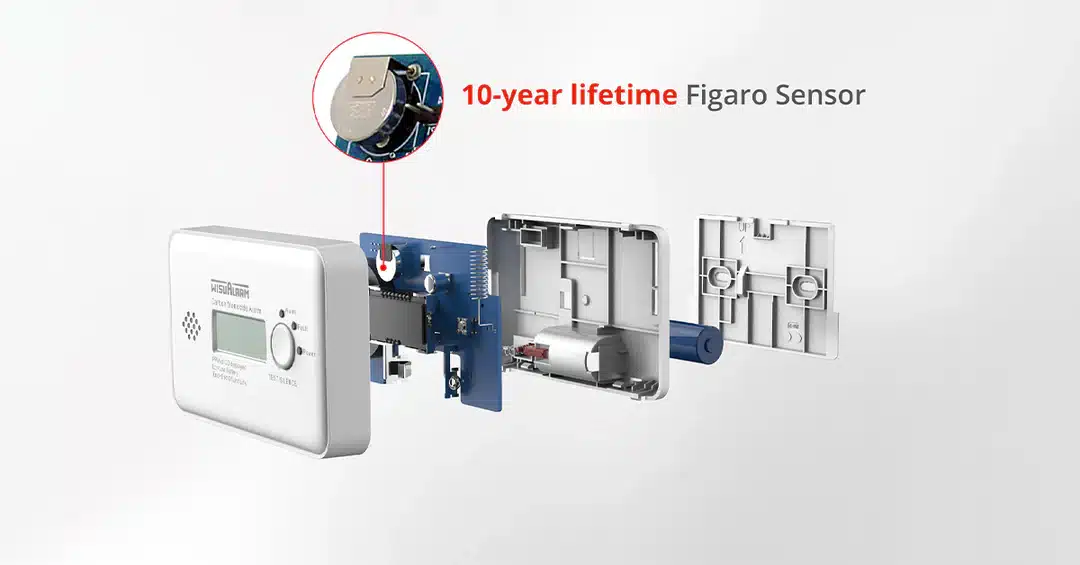

10-year Figaro Carbon Monoxide Sensor
Equipped with a Figaro electrochemical CO sensor that delivers stable performance for 10 years; replaceable battery lasts for 7 years.
Accurate Detection of Carbon Monoxide
High-performance Figaro electrochemical carbon monoxide sensor to deliver accurate detection of carbon monoxide leakage and respond quickly.
Low Battery Warning
To ensure that you are informed in advance about your device’s power status, allowing you to take the necessary actions to avoid any unexpected shutdowns or interruptions.
| Model | C02-R8 |
| Sensor Type | Electrochemical |
| Battery Life | 7 Years |
| Operating Voltage | 3V DC |
| Operating Current | Monitoring Current: ≤20uA; Alarm Current: ≤20mA |
| Operating Environment | Indoor |
| Casing | ABS |
| Operating Temperature | -10°C to +55°C (+14°F to +131°F) |
| Relative Humidity | <95% RH (non condensing) |

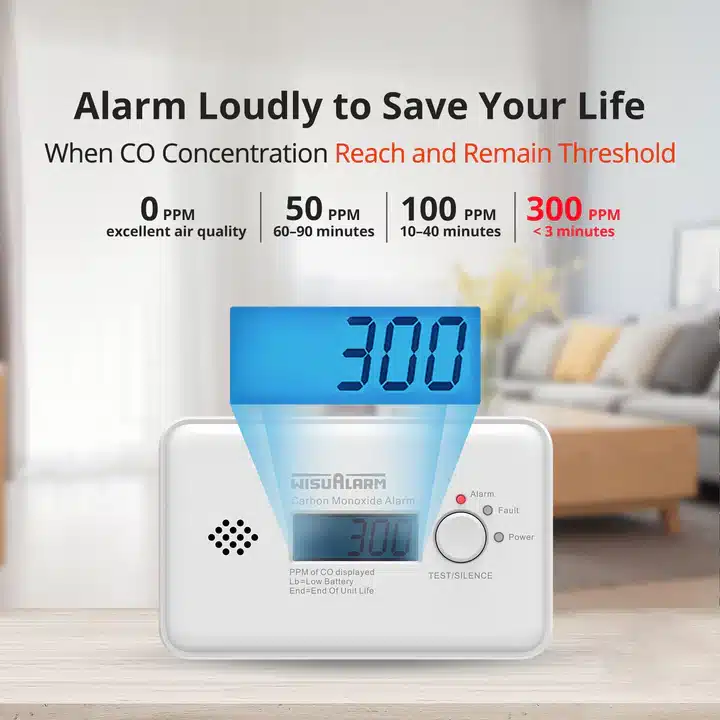

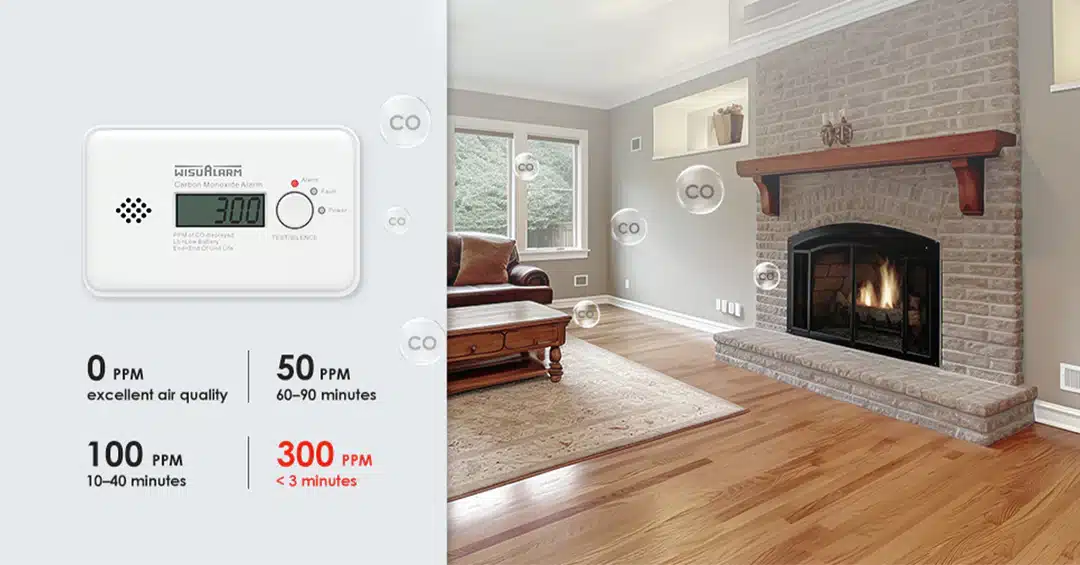

| Alarm Response Threshold | 50 ppm: 60 min–90 min; 100 ppm: 10 min–40 min; 300 ppm: < 3 min |
| Alarm Sound Output | 85dB (A) at 3 m (9.84 ft) |
| Weight | 125 g (0.28 lb) |
| Dimensions | 116.4 mm×71.7 mm ×29.1 mm (4.58″×2.82″×1.15″) |
Wisualarm DHI-HY-GC20B-R8 Data Sheet
